Home > Products > Chinese herbal medicine > ZFJ Series Chinese Herbal Medicine Powder Grinder Machine

ZFJ Series Chinese Herbal Medicine Powder Grinder Machine

  • ZFJ Series Chinese Herbal Medicine Powder Grinder Machine
  • ZFJ Series Chinese Herbal Medicine Powder Grinder Machine
  • ZFJ Series Chinese Herbal Medicine Powder Grinder Machine
  • ZFJ Series Chinese Herbal Medicine Powder Grinder Machine

ZFJ Series Chinese Herbal Medicine Powder Grinder Machine

    Packaging: wooden packing
    Productivity: 2 sets per month
    Transportation: Ocean,Land
    Place of Origin: Jiangyin city Jiangsu province
    Supply Ability: 2 sets per month
    Certificate: CE certificate
    HS Code: 8479820090
    Port: shanghai port

Basic Info

Model No.: ZFJ-200

Product Description

Application

The ZFJ series pulverizer machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen. It is not limited by the viscosity, hardness ,softness or fiber shape of the raw materials, and has good effect to all materials, especially to those Chinese herbal medicines with fibers and those with oils.


Working method
The grinding machine is composed of feeder, grading wheel, pulverizing blades, gears, pulverizing motor. discharging gate, fans, collection box, dust collection box and etc, Any raw material, being fed into the grind chamber through the upper feeder, is pulverized by high speed running blades. The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate. The high speed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while whose unpulverized remained in the chamber. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to GMP standard, is made of stainless steel, with the features of easy structure, convenient operation and cleaning, low noise and high capacity, avoiding dust flying in production.

Advantages
1 Material,usually all material use stainless steel 304,if you want stainless steel 316,we can make for you.
2 Automatic operating :just press button.Easy to clean,usually use water cooling and air compressor is ok .
3 Final powder size range from 60mesh -250mesh,just adjust the gap between knives.

4 Machine has water cooling system to reduce working temperature,so can working long hours.


Model

200

300

400

Capacitykg/h

10-150

60-300

100-500

Size of input granulesmm

≤5

≤12

≤15

Fineness of productsmesh

60-250

Grinding powerkw

5.5

7.5

11

Dust absorption powerkw

1.1

2.2

3


Overall size(mm)
L*W*H


1000×800×1600

1200×850×1780

1500×900×1950

Weightkg

320

650

800


feature

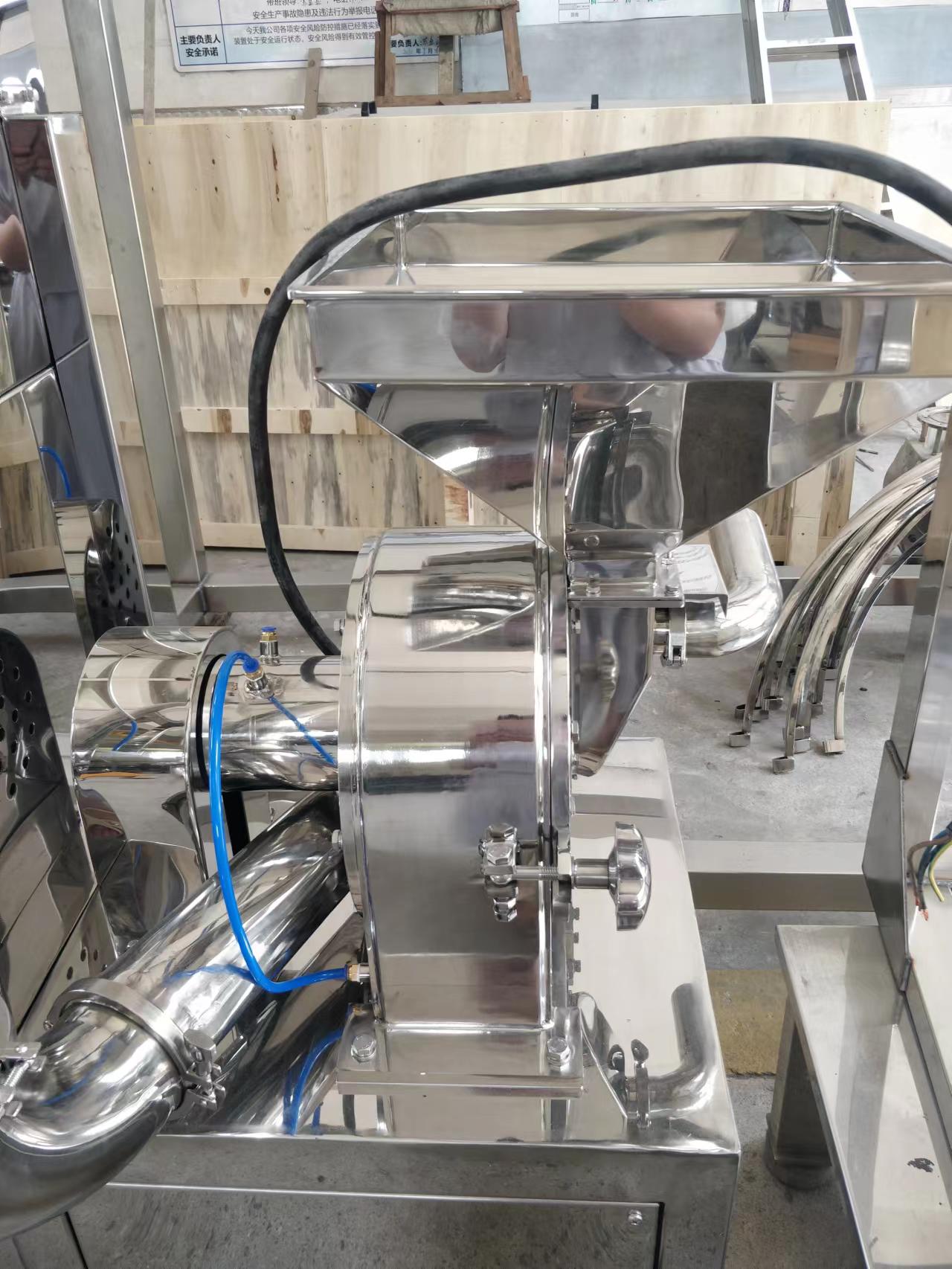

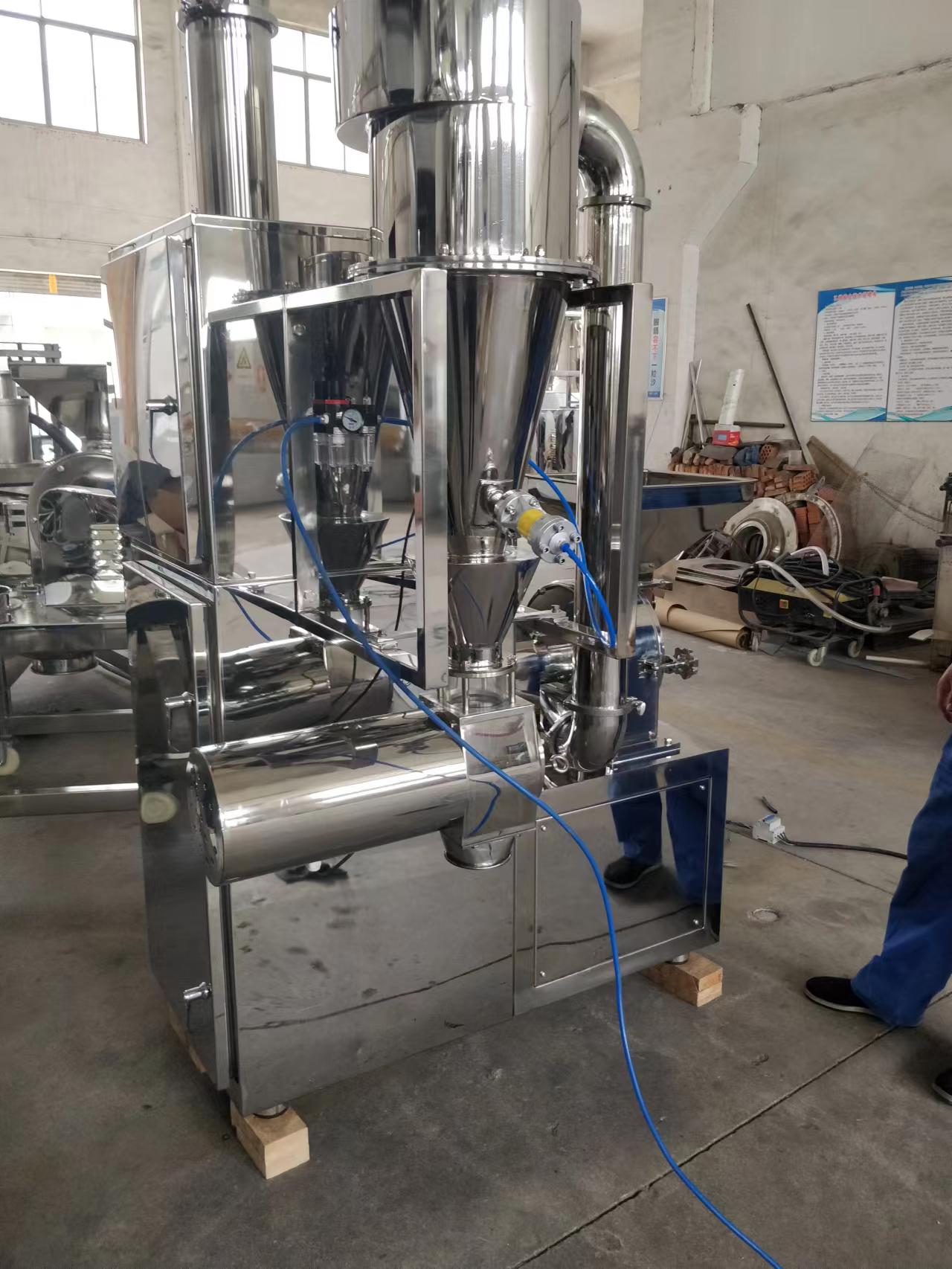

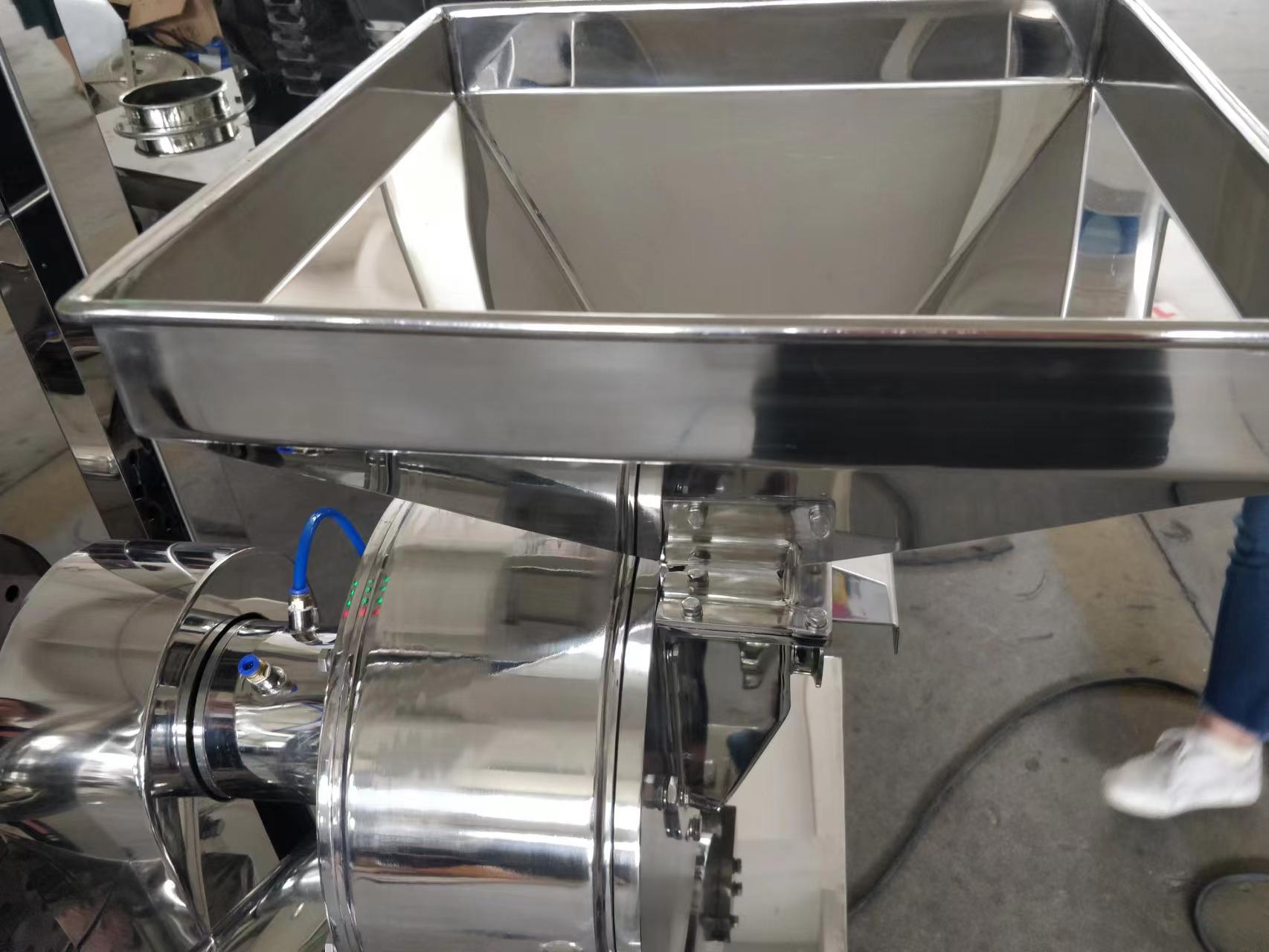

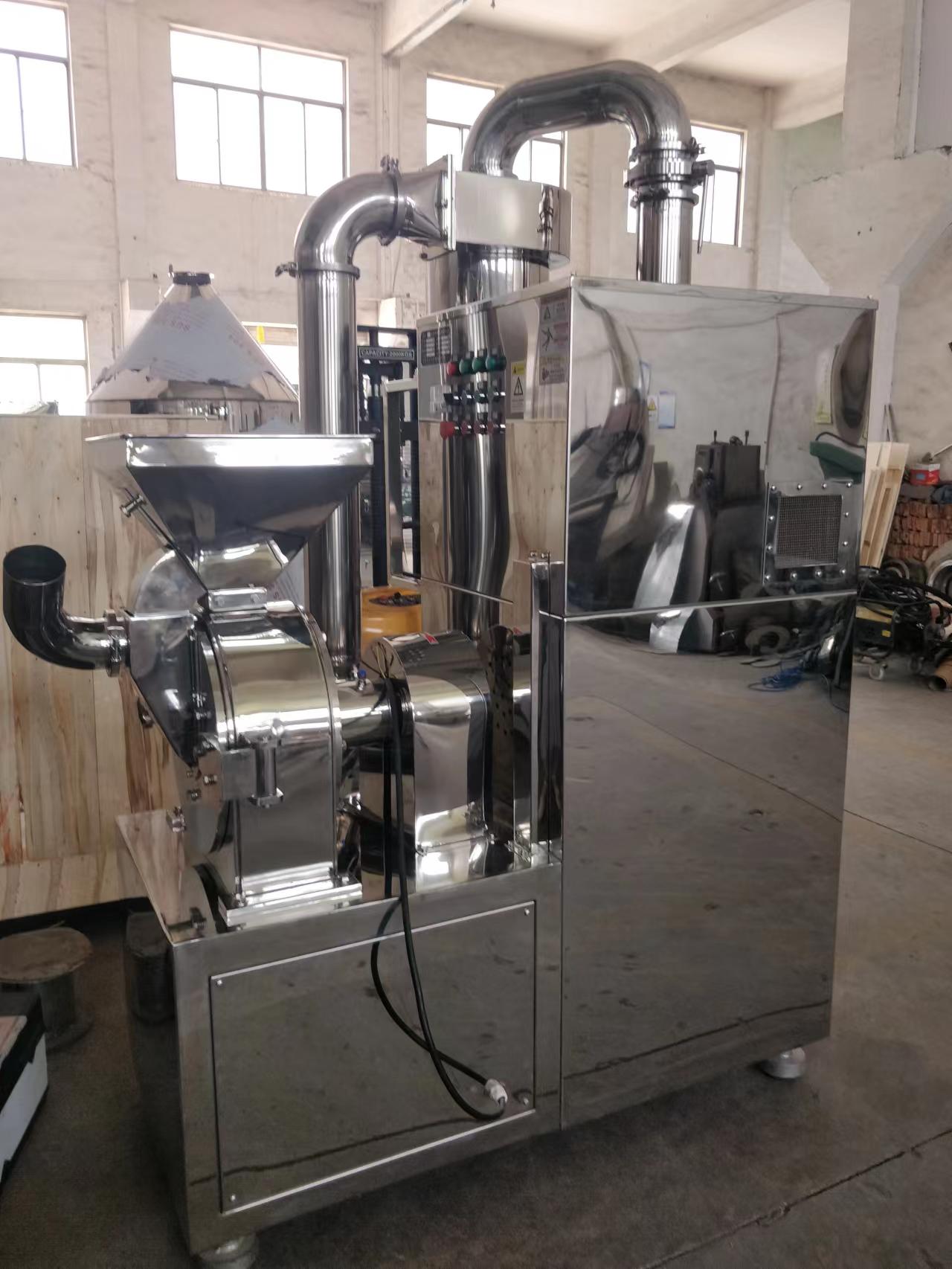

Product Display
pulverizerpulverizerpulverizerpulverizerpulverizerpulverizerpulverizerpulverizer
Application Scenarios
industry

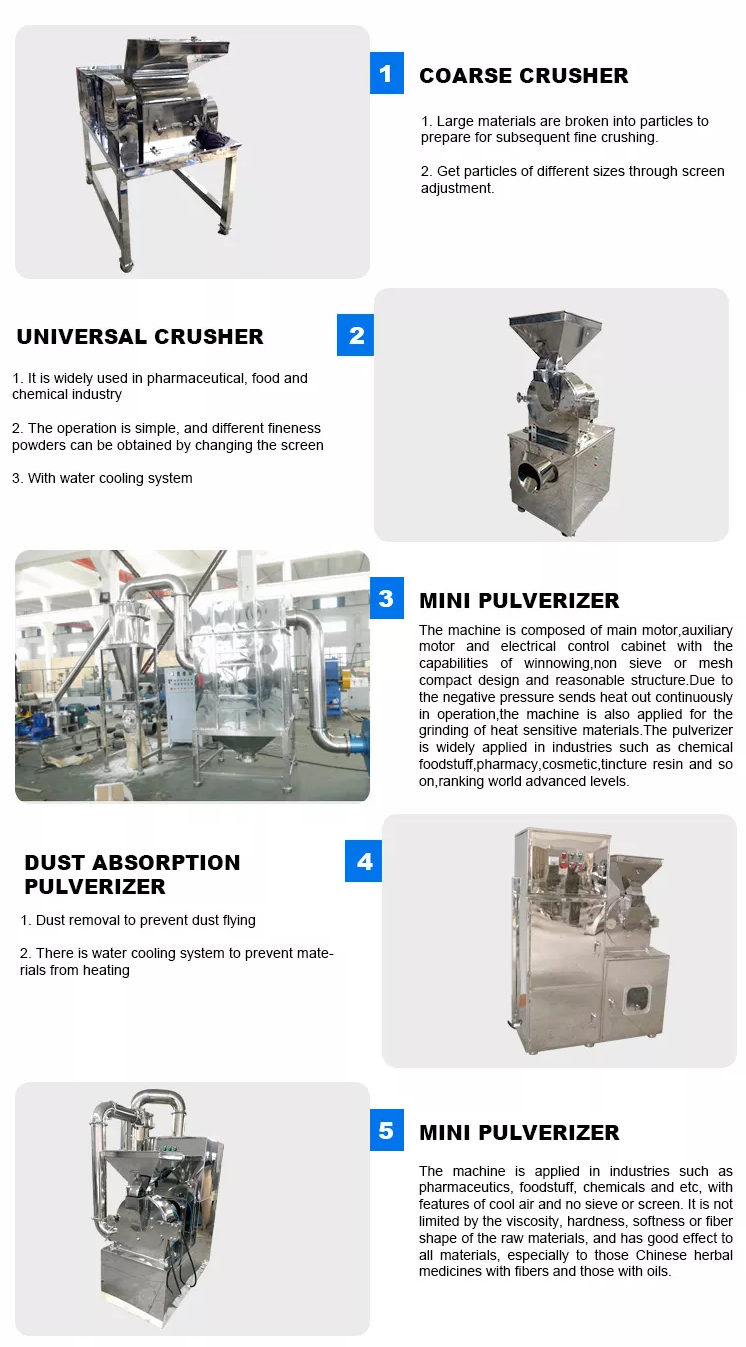

Product Classification
product
Company Information
Jiangyin City Xuan Tai Machinery Equipment Co.,Ltd is located by the site of Taihu lake with the economic prosperity and beautiful scenery —Zhutang Town,Jiangyin city,Jiangsu Province.Which is near to Shanghai in the east,Wuxi in the South,North is the Jiangyin Yangtze River Bridge.The “golden channel “of Shanghai Nanjing High—Speed splitte rand Xicheng Expressway passing near by the geographic location is advantageous and the transportation is very convenient.

Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified.
Main Five series products:pulverizer, sifting machine,mixing machine, granulator machine and dryer machine.
Our company products in the market are welcomed and praised by customers.

The enterprise sticks to the business purposes of “to the quality of survival,to the efficiency of development”.Being pioneers,creative and striving to improve product quality.We will provide our customers with better service. Sincerely thank our new and old customers cooperation and support,welcome to contact us to discuss business and create a better future together!

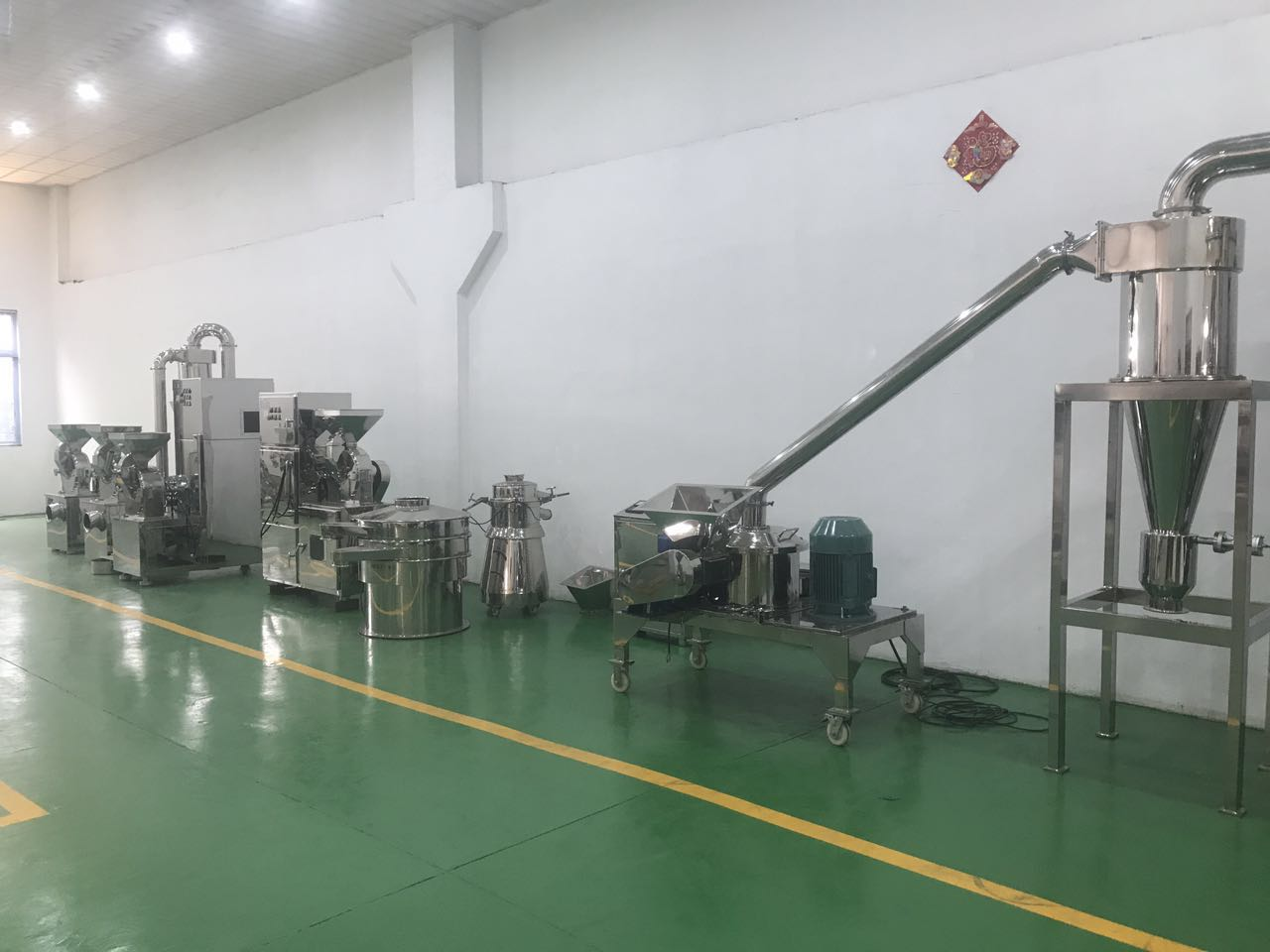

factory
Certifications
CECECECE
Logistics Delivery
Logistic
FAQ
1. What material do you want to grind?is it dry, what is the size of raw material ?

2. What capacity you expect ? (kg/h) What mesh or mm or micron(size) of the powder you want?
The more meshes ,the lower capacity.

3. What voltage you want?
For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...etc.
(We only provide 3P, because our machines are all for industrial use,not for family.)
