Find Good Quality Tea Crusher, Spices Coarse Crushing Machine, Food Coarse Granule Crusher on Industry Directory, Reliable Manufacturer/Supplier/Factory from China.

Inquiry Basket (0)
Home > Products > Tea leaf > Good quality tea leaf coarse crusher machine

Good quality tea leaf coarse crusher machine

  • Good quality tea leaf coarse crusher machine
  • Good quality tea leaf coarse crusher machine
  • Good quality tea leaf coarse crusher machine
  • Good quality tea leaf coarse crusher machine

Good quality tea leaf coarse crusher machine

    Packaging: wooden packing
    Transportation: Express,Ocean,Land,Air
    Place of Origin: Jiangsu,China
    Supply Ability: 20 Set/Sets per Month
    Certificate: CE certification
    HS Code: 8479820090
    Port: Shanghai port

Basic Info

Model No.: CSJ-200B

Product Description


This is a dust absorption coarse crushing machine.The grinding mill machine uses fixed blade and rotary blade to shear the material, to get smaller coarse particles, dust in the production process by the filter cylinder recovery. This machine is suitable for the pre crushing of dry bulk material, the material after the machine can continue to fine crushing by fine powder pulverizer machine.

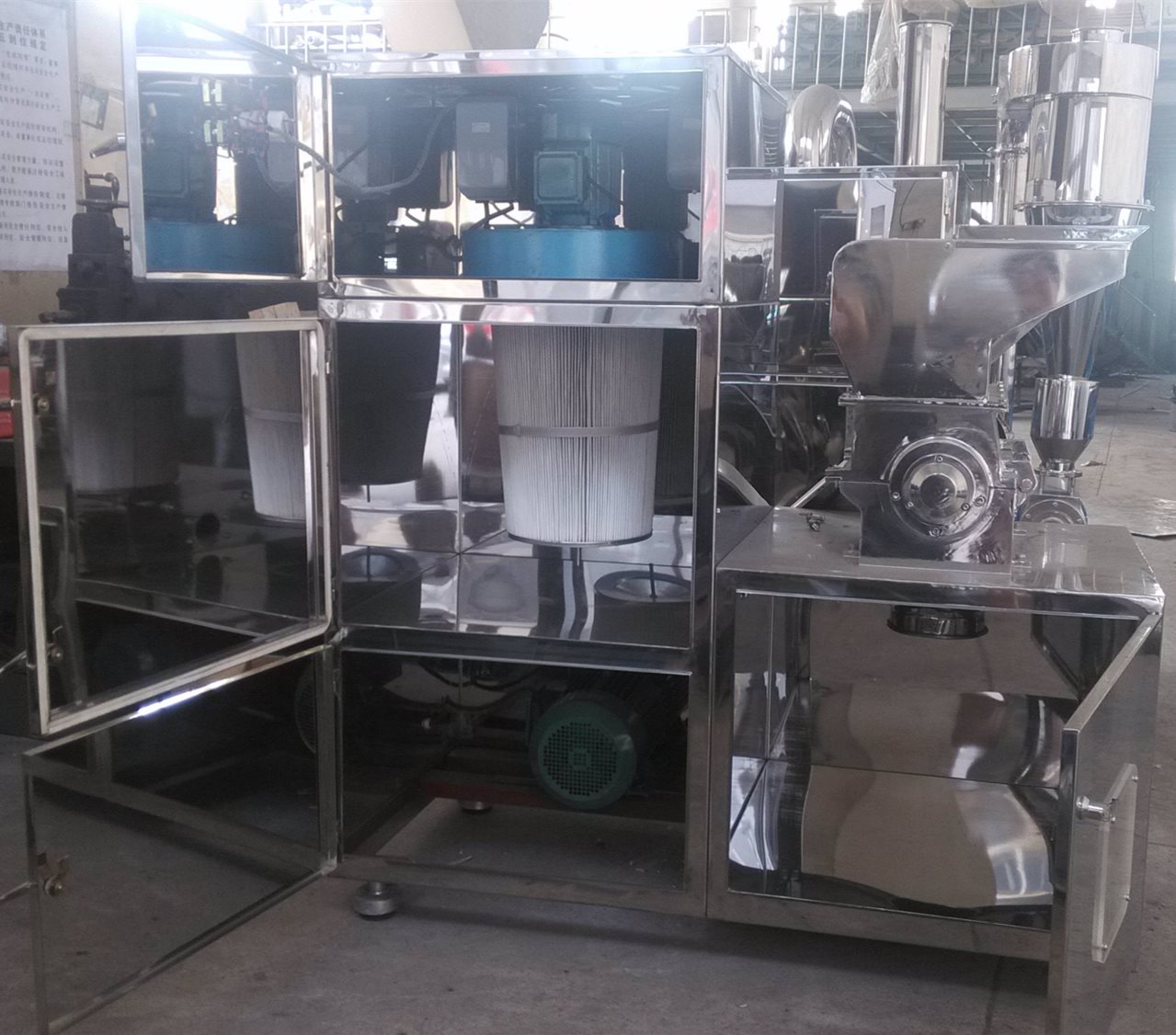

CSJ Series Dust Absorption Crusher


Main Application The machine is applied in the industries of pharmaceutics, chemical and foodstuff,representing a new generale-ration combining dust absorption and grinding.

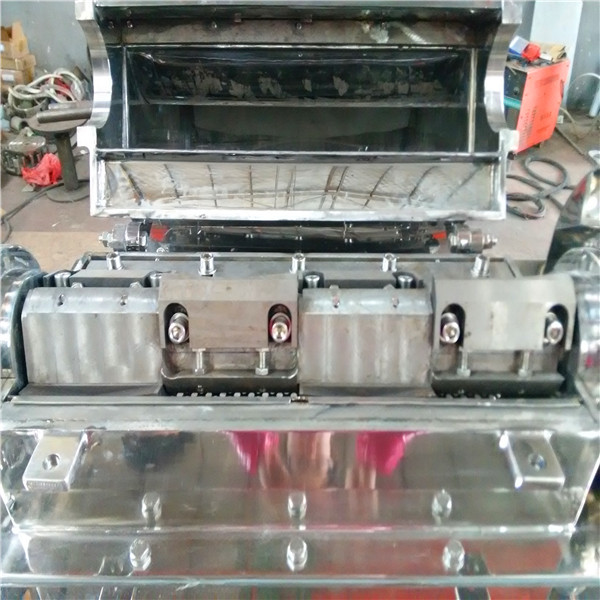

Working method The machine utilizes the impact of revolving and fixed knives to cut and grind raw material that will automatically enters into collection box after cutting. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to GMP standard is made of stainless steel, thus to improve the utilization of raw material and decrease the production cost.Currently, the machine has been on the world advanced level.

Model
80B
120B
200B
Capacity(kg/h)
20-200
100-500
150-800
Size of input granules(mm)
≤50
≤100
≤100
Fineness of products(mm)
0.5-20
0.5-20
0.5-20
Speed of principal axis(r/min)
400
400
400
Grinding power(kw)
1.5
3
5.5
Dust absorption power(kw)
1.1
1.1
1.5
Weight(kg)
200
350
520
Overall size(L×W×H)(mm)
1100×500×1500
1200×600×1650
1300×700×1700
crusher crusher
crusher crusher
crusher crusher
COARSE CRUSHER 1.Large material are broken into particle to prepare foe subsequent fine crushing.2.Get particles of different sizes through screen adjustment.crusher
AIR COOLED PULVERIZER 1.Especially suitable for grinding slightly sticky materials such as spices.2.The crushing chamber equipped with the wind wheel type high speed rotating cutter,so that the airflow in the cavity is strong enough to eliminate any heat in the machine.

pulverizer

UNIVERSAL PULVERIZER 1. With water cooling system, widely used in pharmaceutical, food, chemical industry.2. Simple operation, powder can reach 100-120 mesh after crushing. By changing the screen to obtain different sizes of powder.

pulverizer

DUST ABSORPTION PULVERIZER 1.Dust removal to prevent dust flying.2.There is water cooling system to prevent materials from heating.

pulverizer
MINI POWDER PULVERIZER 1.The fineness of pulverized powder can reach over 250 mesh.2.with the capabilities of winnowing, non-sieve or mesh equality of granule size and continuous processing,etc.
pulverizer
Chinese herbal medicine PULVERIZER 1.Suitable for crushing materials containing more fiber such as Chinese herbal medicine. 2.Through high-speed rotation of the blade to crush the material, fineness can reach 200-250 mesh.

pulverizer

Jiangyin Xuanteng machinery equipment Co.,ltd is located in the site of taihu lake with the economic prosperity and beautiful scenery,jiangyin city,jiangsu province,China. We specializes in producing pharmaceutical machinery,food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulator and drier machine. We are a professional manufacturing factory with research,development and sales of medicine machinery. The enterprise sticks to the business purpose of "to the quality of survival,to the efficiency of development".Being pioneers,creative and striving to improve product quality.We will provide our customers with better service.


1. who are we?
We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Southeast Asia(12.00%),North
America(10.00%),Western Europe(10.00%),South America(8.00%),Central America(5.00%),Oceania(4.00%),Mid East(3.00%),SouthernEurope(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Africa(1.00%),South Asia(1.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

3.what can you buy from us?
Pulverizer,Mixer,Sifting machine,Granulator,Drier

4. why should you buy from us not from other suppliers?
We specializes in producing pharmaceutical machinery,food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulatorand drier machine. We are a professional manufacturing factory with research,development and sales of medicine machinery.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Language Spoken:English,Chinese

JIANGYIN CITY XUAN TENG MACHINERY EQUIPMENT CO.,LTD

  • 1
  • 2
  • 3
  • 4
  • 5
 Our company specializes in producing pharmaceutical machinery,food machinery,chemical machinery.We are a professional manufacturing factory with research,development and sales of medicine machinery.Through the rigorous testing system to ensure 100% qualified. Main Five series products:Pulverzier,sifting machine,mixer,granulator and dryer machine. Our company products in the market are welcomed and praised by customers.

Company Info

  • Company Name: JIANGYIN CITY XUAN TENG MACHINERY EQUIPMENT CO.,LTD
  • Representative: WANG CHUNFENG
  • Product/Service: Mixing Machine , Powder Mixer , Spices Grinding Machine , Food mixer , Herbs Pulverizer , Powder Mill
  • Capital (Million US $): 500,000RMB
  • Year Established: 2015
  • Total Annual Sales Volume (Million US $): US$5 Million - US$10 Million
  • Export Percentage: 91% - 100%
  • Total Annual Purchase Volume (Million US $): Below US$1 Million
  • No. of Production Lines: 12
  • No. of R&D Staff: Fewer than 5 People
  • No. of QC Staff: Fewer than 5 People
  • OEM Services Provided: no
  • Factory Size (Sq.meters): Below 1,000 square meters
  • Factory Location: NO.2 Zhuwen road,Zhutang town,Jiangyin city,Jiangsu
  • Contact Person: Mr. CHUNFENG WANG
  • Tel: +86-510-86380586
